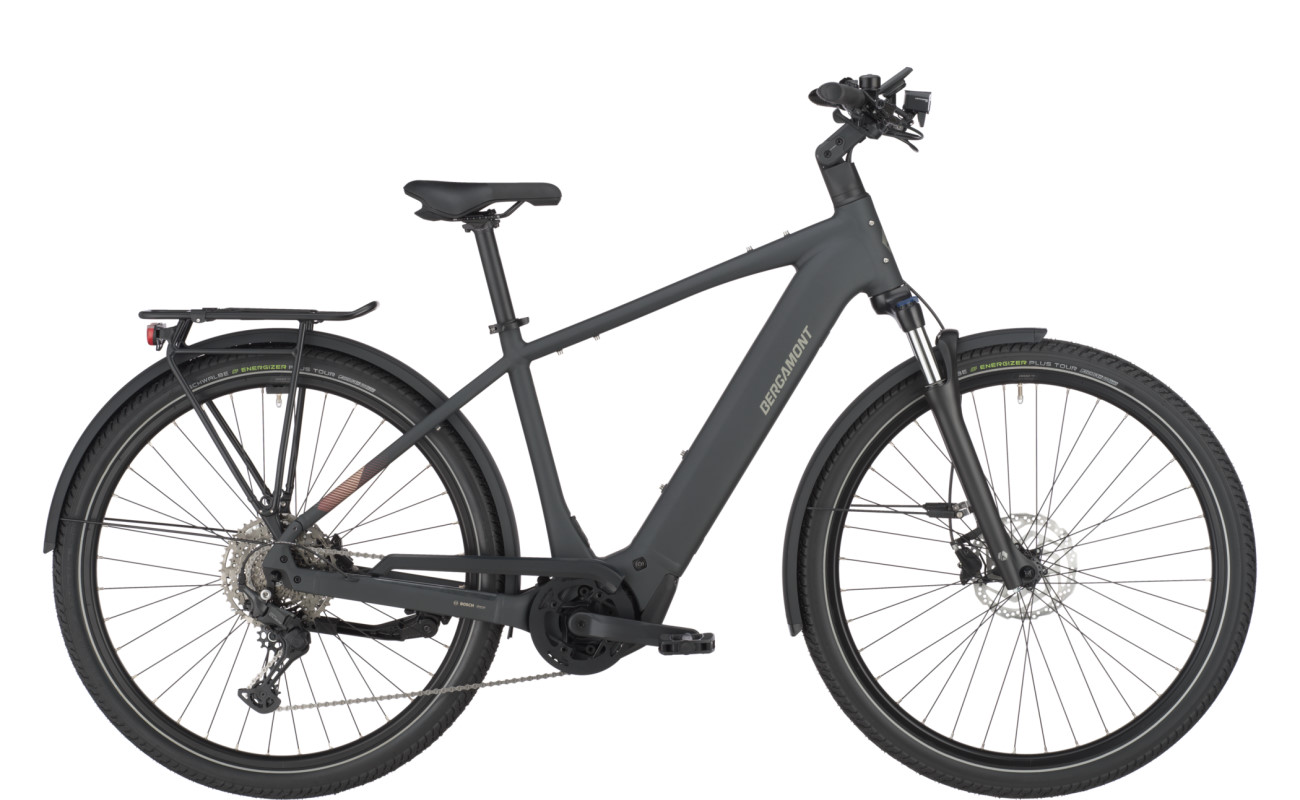

BERGAMONT E-Horizon Sport 20 - flaky black

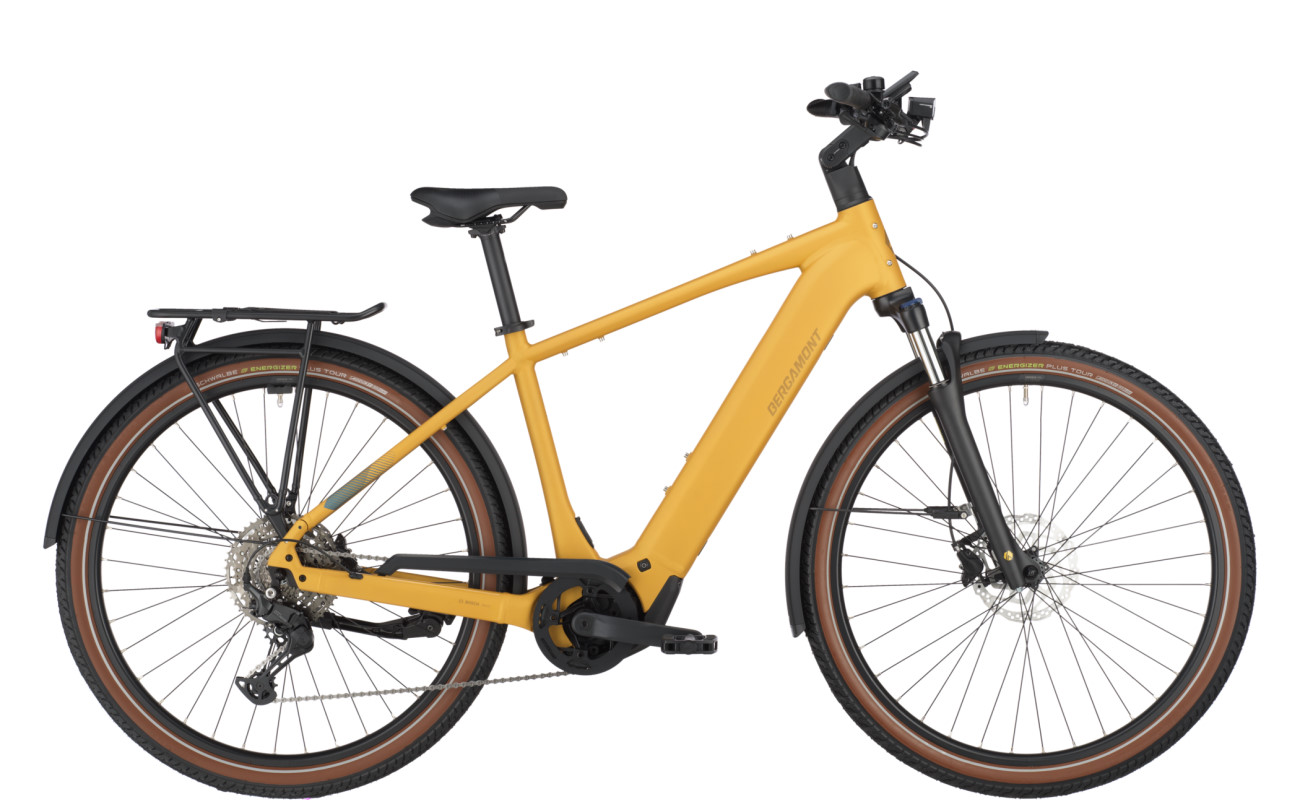

BERGAMONT E-Horizon Sport 20 - colorado gold

£3,599

Bosch Performance CX 85Nm, Shimano CUES 10-speed, 600Wh Integrated battery, Intuvia 100 display

Colour

Frame Size

Clear

BERGAMONT E-Horizon Sport 20

The BERGAMONT E-Horizon Sport 20 is a tough and rugged performer, suitable for everyday applications. It’s a simple, no-nonsense ebike with a wide range of great features and stylish good looks.

Based on 28″ wheels, the Sport 20 is full of great features and high level components. It’s extremely comfortable, provides ultra-tuned ergonomics, and is an easy to ride touring e-bike. It’s equally at ease on tarmac roads or loose terrain. The strong Bosch Performance CX motor pulls at 85Nm and couples with a long range 600Wh integrated battery.

This combination of powerful motor and battery make cycling a real breeze, and guarantee long, leisurely rides out.

NEW 600Wh Bosch Battery and Performance CX Drive

Bosch Performance CX Motor

Sporting Bosch’s newest and quieter Performance CX motor and lighter 600Wh battery, the E-Horizon Sport 20 is a dream to ride.

Kicking out 85Nm, the new CX motor is lighter and quieter. Furthermore, it takes riding dynamics and agility to a whole new level. Also, there’s a brand new feature: Hill Start Assist. This enables a controlled and high-traction start, even on steep terrain. When active, your eBike stays in place and does not roll back unexpectedly.

Bosch 600Wh PowerTube

There’s a very strong argument to say that Bosch have hit the sweet spot with their new 600Wh battery.

Comparing the weight of Bosch’s current 625Wh battery to the new 600Wh, shows that the 600Wh is easily over half a kilo lighter. With a range of at least 50 miles in the higher levels of assist, that’s more than enough for most people. In addition, it helps keep the total weight of the bike down too!

The BERGAMONT E-Horizon Sport 20 is sensible and straightforward in design.

It’s Suntour front forks are strong yet versatile, with 75mm travel. They cope easily with everyday bumps to ensure a smooth and even ride. The Shimano CUES 10-speed gearing is smooth changing and effortless. Hydraulic disc brakes from Shimano ensure responsive and effective braking when required.

The wheelset on the BERGAMONT E-Horizon Sport 20 is both strong and reliable, offering resilience, longevity and stability. Each wheel comprises a quality Shimano hub and BGM Pro X17 rims which are more than up to the job in hand. Add to that a nice sized 55c Schwalbe Energizer Plus Tour, Performance tyre with puncture resistance and you have a really nice, confident and comfortable ride ahead.

Ultra bright lights feature on the Sport 20. On the front is a bright Trelock LS830, whilst a top notch Axa Juno with brake light function illuminates the rear. Featuring strong mudguards, front and rear, a clean ride is assured every time. A very useful Racktime™ rear carrier allows luggage to be easily attached and removed. Hassle-free! Finally, the adjustable stem means a comfortable fit for all riders.

The Bosch Intuvia 100 display with LED Remote provides all the necessary rider information clearly and concisely.

The BERGAMONT E-Horizon Sport 20 is an ideal eBike for those seeking a reliable and comfortable tourer.

See our full range of BERGAMONT electric bikes HERE.

Motor	Bosch Performance CX (85Nm)
Battery	600Wh
Gears	Shimano Cues, RD-U6000, Shadow Plus 10-speed
Cassette	Shimano Cues, CS-LG400-10, 11-48t
Forks	Suntour NVX 30 DS NLO, 75 mm
Brakes	Shimano BR-MT200 Disc
Wheel Size	28"
Tyres	Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622
Colour	colorado gold, flaky black
Frame Size	45.5cm (Small), 49.5cm (Medium), 53.5cm (Large), 57.5cm (Extra Large), 61.5cm (Extra, Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
