Light Weight

Only 18.6kg

£2,499

LIGHTWEIGHT, Bosch Smart System, Bosch System Control, incl. Mini Remote Display & Remote SMART SYSTEM, 400Wh battery, Bosch Performance SX 55Nm, Shimano CUES U4000 gearing, lights, mudguards & kickstand

Frame Size

Clear

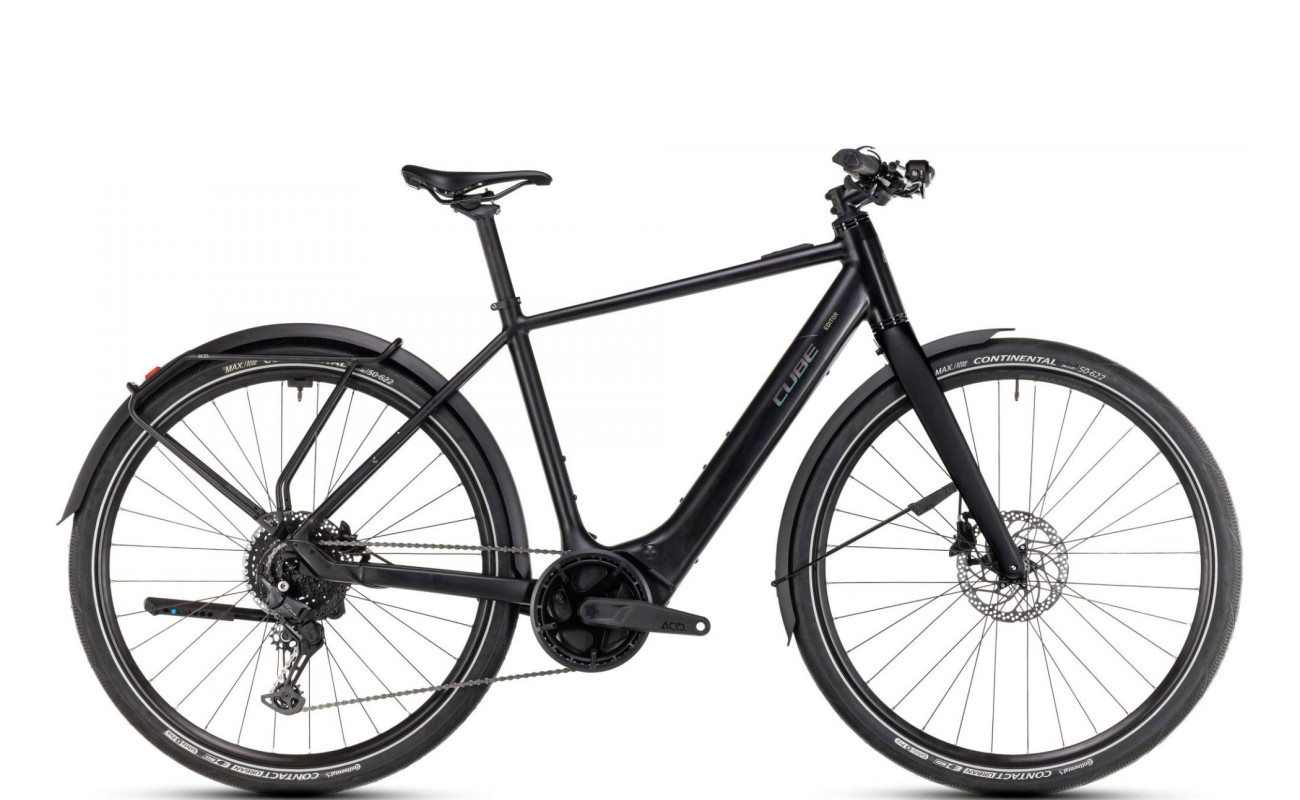

CUBE Editor Hybrid Pro FE 400X

The CUBE Editor Hybrid Pro FE 400X is one of five models in the ‘Editor’ range signaling a new era for CUBE. The term ‘FE’ signals this bike as being ‘fully equipped’. It shares the same specification as the Pro 400X with the addition of:

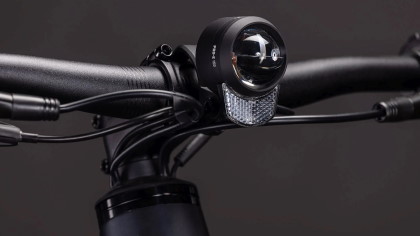

front light

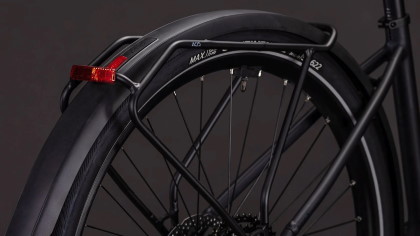

rear light
mudguards, front & rear
kickstand.

With beautiful aesthetics, the Hybrid Pro FE 400X is a super agile, lightweight eBike with the aim of improving urban mobility. As well as high quality components, it features the new, powerful SX 55Nm motor from Bosch. Total bike weight is amazingly light at just 18.6kg (excluding pedals).

Sporty and Elegant

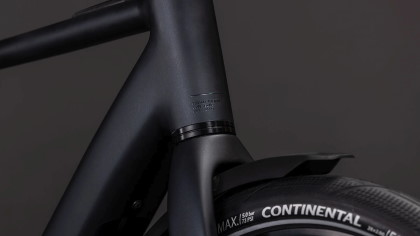

At first glance, the CUBE Editor Hybrid Pro FE 400X is both sporty and elegant. The clean lines of the aluminium frame are more reminiscent of a gravel bike than a city ebike. Its sharp looks are not only due to the beautiful design of the diamond frame, but to the way all cables neatly disappear into the headset.

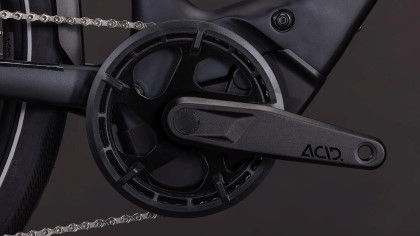

Bosch SX Motor

When muscle power and electric support work in conjunction, you get top performance exactly when you need it. Also, Bosch’s Performance Line SX is a sporty drive unit that is lighter and more compact than all their other drives.

600Watts of power
only 2kg in weight
max 55Nm torque
sprint mode for sporty riding

Pedal faster, pick up speed even faster: The Performance Line SX works at least as hard as you do. It has a reduced pedal resistance of more than 50 percent compared to the Performance Line CX. Also, it has a narrower design of the cranks and an almost silent motor, and fits seamlessly with the CUBE Editor Hybrid Pro FE 400X.

At around just 2kg, the Performance Line SX is Bosch’s lightest drive with the highest power density. Likewise, it reduces the total weight of your eBike, delivers greater agility and is ideal for fans of a sporty riding style. In addition, the compact drive unit disappears elegantly into the crank area so it looks like a conventional bike.

The CUBE Editor Hybrid Pro FE 400X Features the Latest Bosch Technology

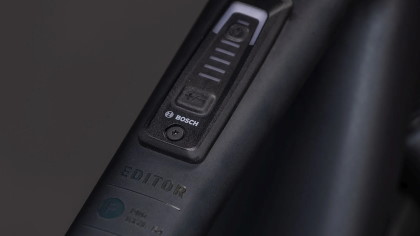

Bosch’s new SMART SYSTEM features on the Editor Hybrid Pro FE 400X, with a Bosch System Control Display on the top tube. It’s minimalist in nature, providing battery level information and level of assist. The Bosch Mini Remote on the left of the bars allows the rider to change these levels easily at the press of a button.

Entry Level Specification, High Level Performance

The Editor Pro FE 400X model is one of FIVE available variants within the Editor range. All Editors use the same frame and Bosch technology, but differ in componentry.

A superlite Aluminium frame forms the base of the Pro FE 400X. Carbon forks ensure both a nimble and lightweight nature to this fine specimen. The Shimano CUES derailleur is robust and silky smooth, whilst a set of Shimano MT200 hydraulic disk brakes effectively tame the bike when needed.

Furthermore, the Continental Contact Urban, 50-622 tyres provide exceptional grip, traction and low roll resistance on a multitude of surfaces. In addition, this beauty is equally at home in the urban jungle as it is on canal towpaths, fire tracks in the forest and the like.

CUBE Editor Hybrid Pro FE 400X Barely Recognisable as an eBike

The Bosch CompactTube 400Wh battery integrates seamlessly within the frame producing a bike that’s barely recognisable as an ebike. Its flowing lines and stunning good looks are quite unique.

The CUBE Editor Hybrid Pro FE 400X is a real gem from CUBE and comes at a very affordable price.

Learn more about the Bosch Performance Line SX motor HERE.

See our full range of CUBE electric bikes HERE.

Motor	Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery	Bosch CompactTube 400
Gears	Shimano Cues RD-U6000-GS
Shifter	Shimano Cues SL-U6000, Rapidfire-Plus
Cassette	Shimano Cues CS-LG300, 11-39T
Forks	Cube Editor Full Carbon, 1 1/8" – 1 1/2" Tapered, Internal Cable Routing, 12x100mm
Brakes	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rims	Cube EX21, 32H, Disc, Tubeless Ready
Wheel Size	28"
Tyres	Continental Contact Urban, 50-622
Colour	black´n´spectral
Frame Size	50cm (Small), 54cm (Medium), 58cm (Large), 62cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
