Light Weight

Only 13.9kg

£3,499

Full CARBON FRAME, 13.9kg, Sram Apex XPLR AXS 12-speed electronic shifting, Newmen Performance X.R. 25 rims, Bosch Smart System, Bosch Mini Remote SMART SYSTEM, 400Wh battery, Bosch Performance SX 55Nm

Frame Size

Clear

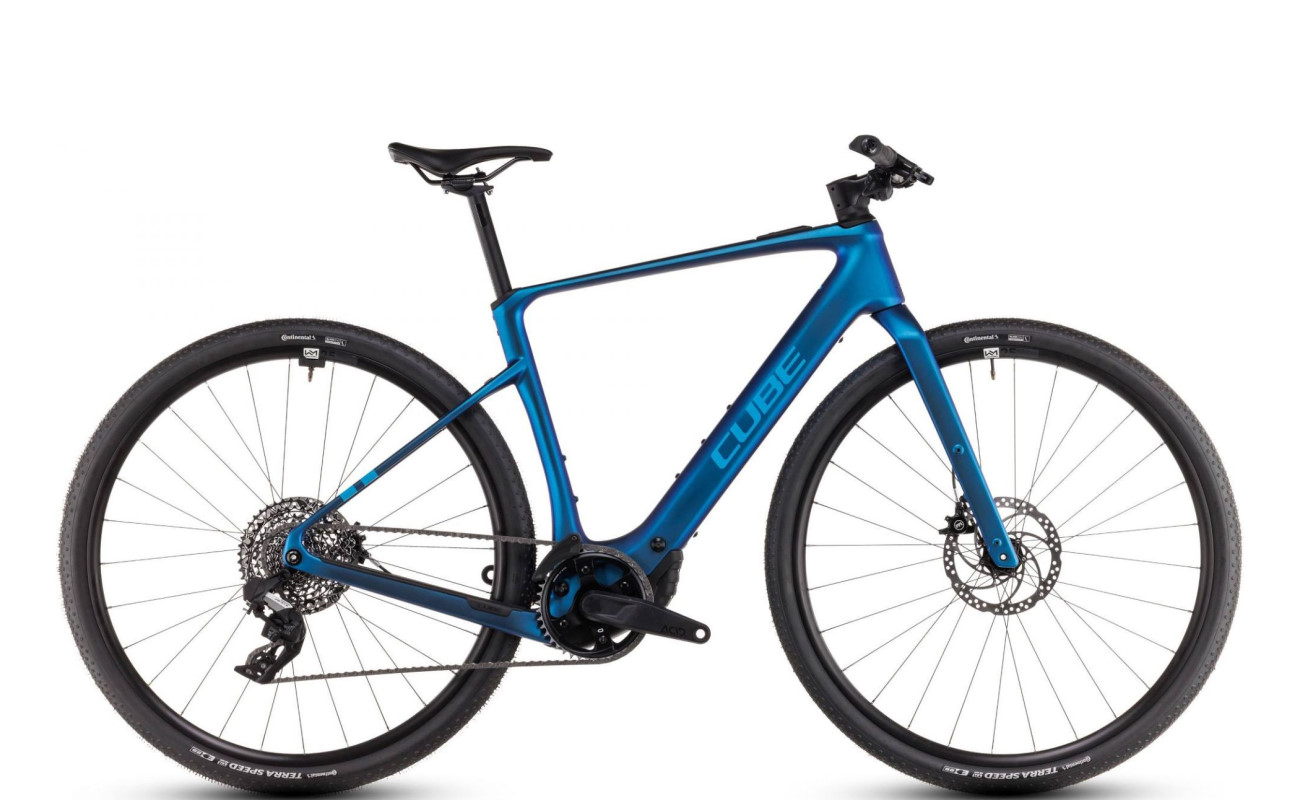

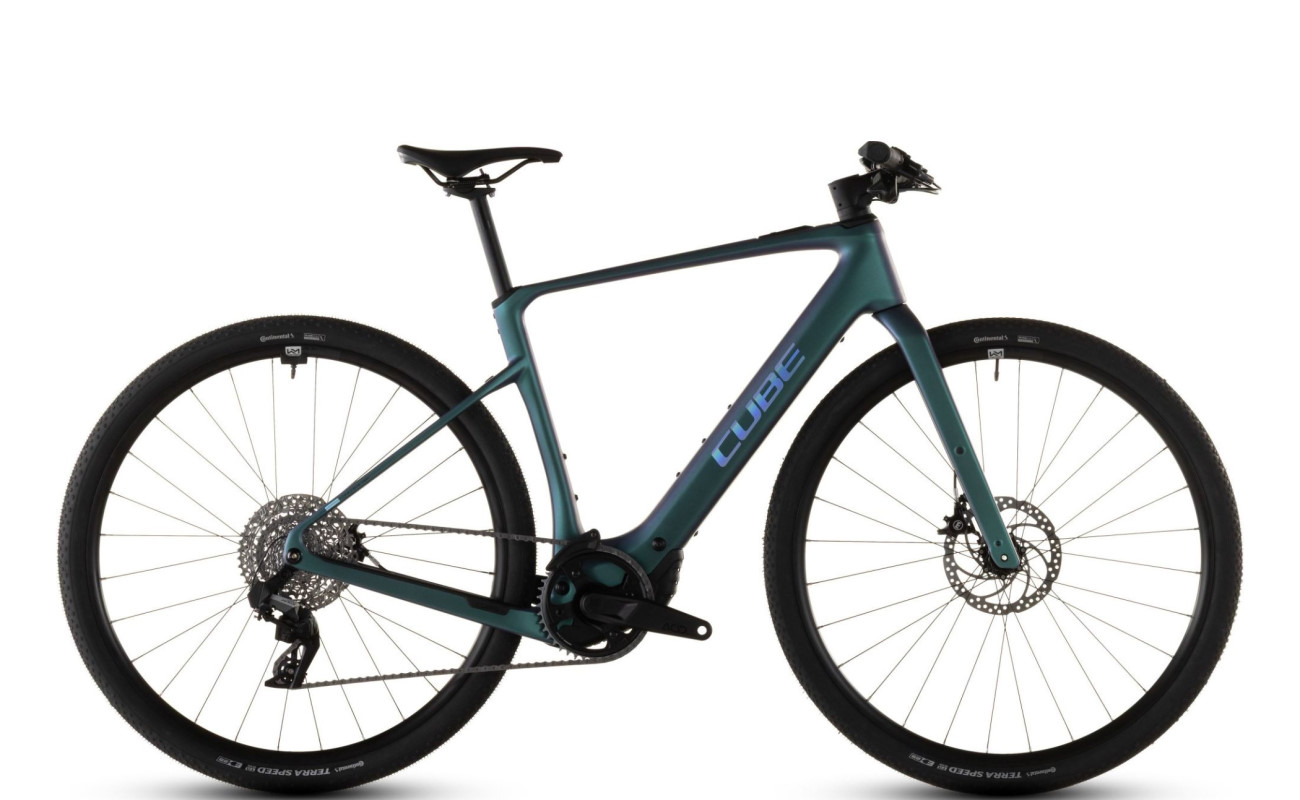

CUBE Nulane Hybrid C:62 SLX 400X

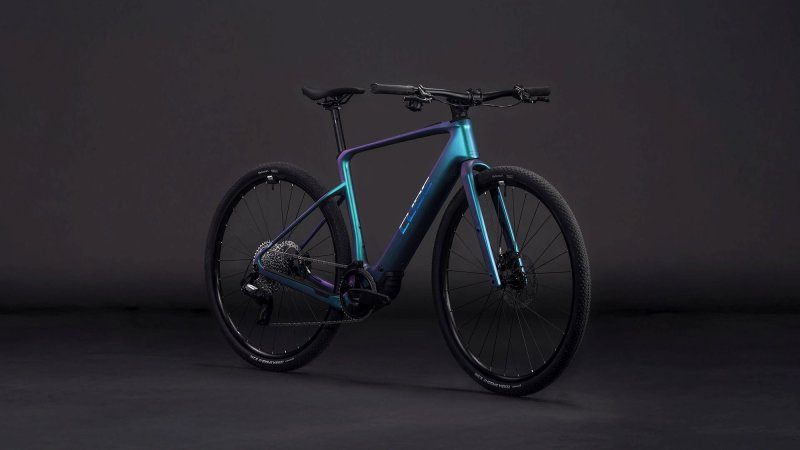

It might be the elegant design and lightweight C:62® carbon frame that draws you in, but the Cube Nulane Hybrid C:62 SLX 400X’s unmatchable functionality is a real winner.

The Nulane Hybrid C:62’s carbon frame’s organic curves and clean looks disguise serious intent. There’s clearance for tyres up to 50mm, even with mudguards fitted. In addition, there are luggage carrier mounting points both for the rear and on the full carbon fork, so you can tackle the weekday commute or a longer tour easily.

Furthermore, the new, light and powerful SX 55Nm motor from Bosch at only 2kg is a huge weight saving when comparing it to the other Bosch motors. Total bike weight is supremely light for an eBike, weighing in at a mere 13.9kg (without pedals).

Electronic Shifting

Sram’s Apex XPLR AXS 12-speed electronic shifting elevates the Nulane Hybrid C:62 SLX to a whole new level. Precise and responsive gear changing at the touch of a button. What could be simpler.

Bosch SX Motor

When muscle power and electric support work in conjunction, you get top performance exactly when you need it. Also, Bosch’s Performance Line SX is a sporty drive unit that is lighter and more compact than all their other drives.

600Watts of power
only 2kg in weight
max 55Nm torque
sprint mode for sporty riding

Pedal faster, pick up speed even faster: The Performance Line SX works at least as hard as you do. It has a reduced pedal resistance of more than 50 percent compared to the Performance Line CX, a narrower design of the cranks and an almost silent motor.

At around just 2kg, the Performance Line SX is Bosch’s lightest drive with the highest power density. Likewise, it reduces the total weight of your eBike, delivers greater agility and is ideal for fans of a sporty riding style. In addition, the compact drive unit disappears elegantly into the crank area so it looks like a conventional bike.

The CUBE Nulane Hybrid C:62 SLX 400X Features the Latest Bosch Technology

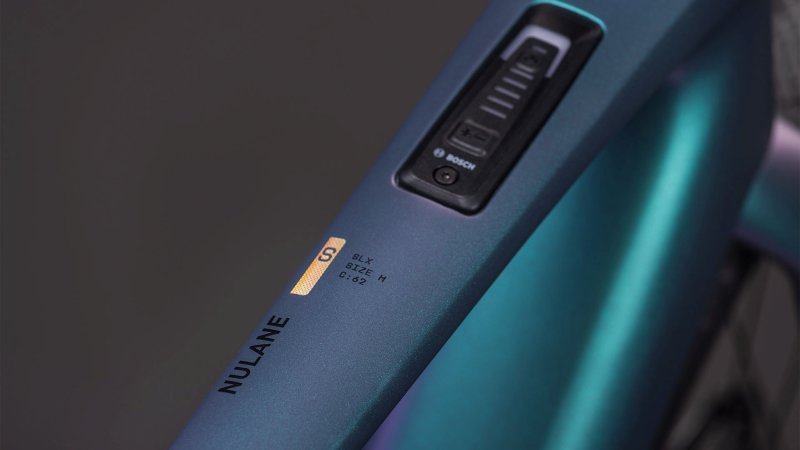

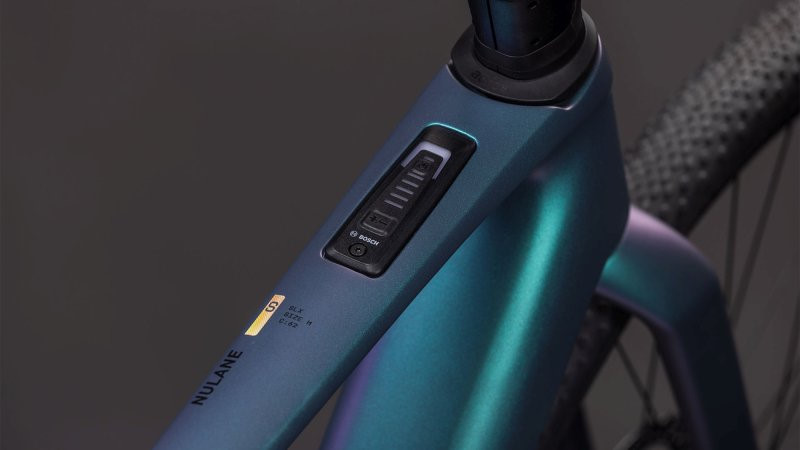

Bosch’s new SMART SYSTEM features on the Nulane, utilising a Bosch Mini Remote SMART SYSTEM on the left of the bars. It provides access to all power levels at the push of a button.

High Quality Components

The Cube Nulane Hybrid C:62 features a really nice Newmen Performance 25 gravel wheelset. It’s light yet robust enough for the rigours that road riding brings. A set of Continental Terra Speed 45mm tyres are light, fast-rolling and tough enough for anything from potholed city streets to gravel forestry tracks.

In addition, a lovely set of Shimano MT8 Pro hydraulic brakes tame the bike when required and act responsively and effectively. They’re lightweight thanks to a Carbotecture structure encompassing carbon fibres.

Learn more about the Bosch Performance Line SX motor HERE.

See our full range of CUBE electric bikes HERE.

Frame	C:62® Advanced Twin Mold, Gravel Endurance Geometry, Advanced Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, Boost 148, UDH™, Fully Integrated Battery
Motor	Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery	Bosch CompactTube 400
Gears	Sram Apex XPLR AXS, 12-Speed electronic shifting
Shifter	Sram AXS™ Pod Controller
Cassette	Sram XPLR XG-1251, 10-44T
Forks	Cube C:62® Technology, 1 1/2" – 1 1/2" Tapered, Flat Mount Disc, Fender & Lowrider Mounts, 12x100mm
Brakes	Magura MT8 Pro, Flat Mount, Hydr. Disc Brake (180)
Rims	Newmen Performance X.R. 25
Wheel Size	28"
Tyres	Continental Terra Speed 45mm
Colour	NEBULA/BLUE
Frame Size	47cm (Extra Small), 50cm (Small), 53cm (Medium), 55cm (Large), 58cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
