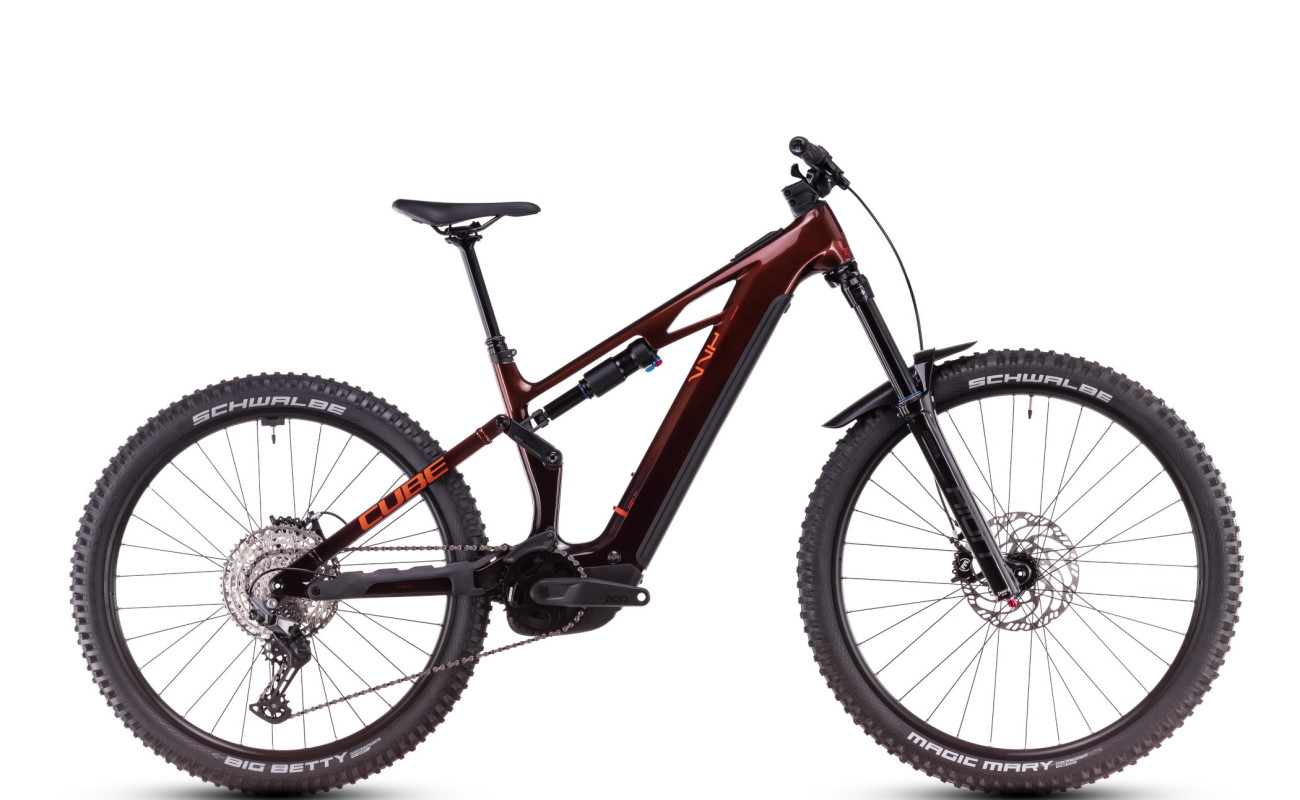

CUBE Stereo Hybrid ONE77 HPC Race 800 - liquidorange'n'orange

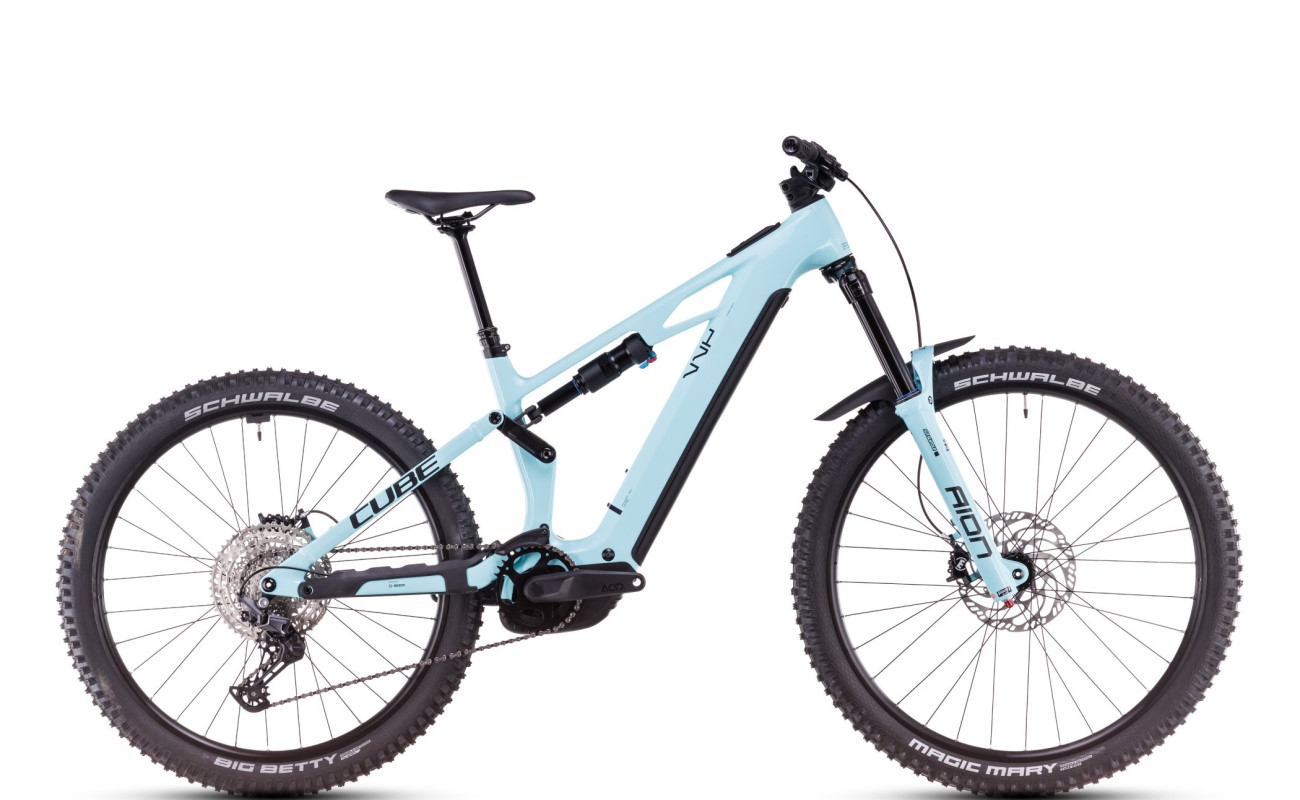

CUBE Stereo Hybrid ONE77 HPC Race 800 - dazzle'n'black

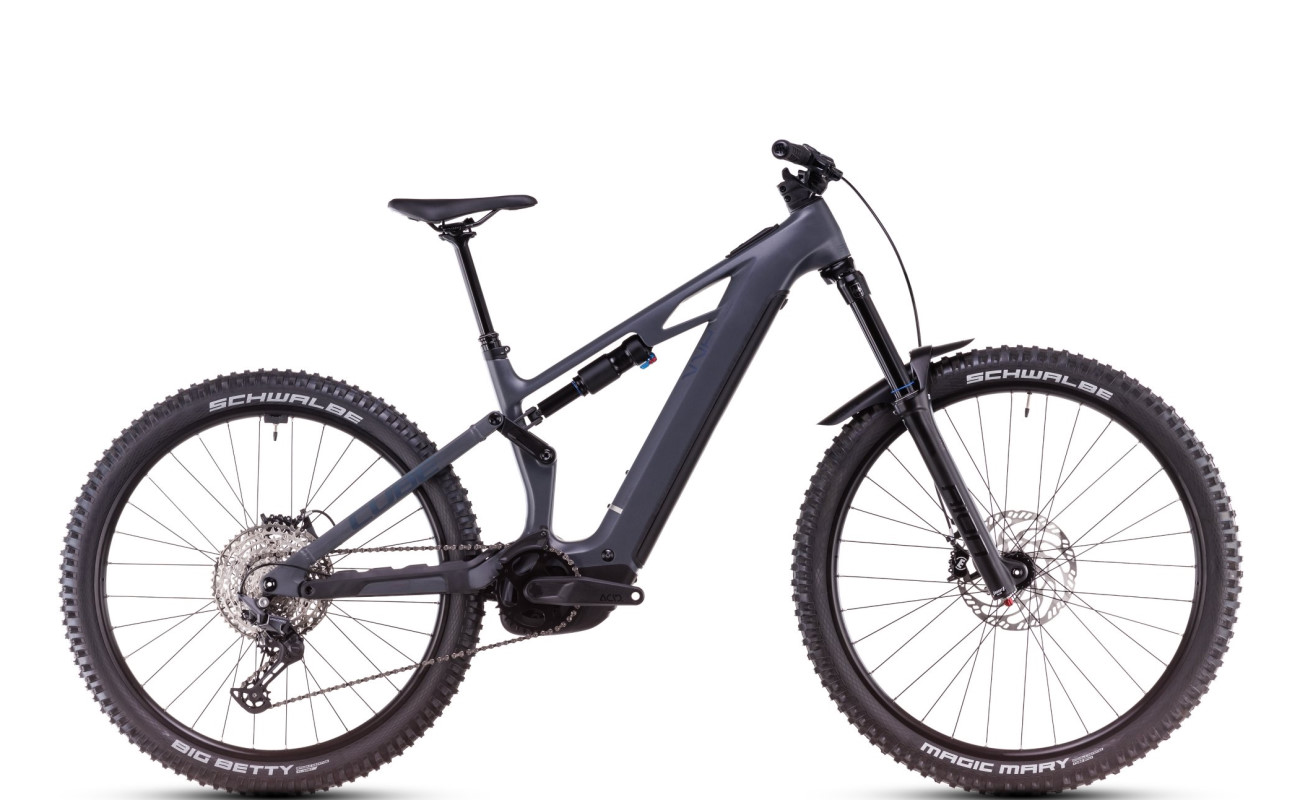

CUBE Stereo Hybrid ONE77 HPC Race 800 - slapgrey'n'prism

£3,999

Bosch Performance CX motor, 800Wh, Suntour suspension front & rear, Shimano Deore 12-Speed, Magura MT Thirty brakes 4-piston, dropper seatpost

Colour

Frame Size

Clear

CUBE Stereo Hybrid ONE77 HPC Race 800

The CUBE Stereo Hybrid ONE77 HPC Race 800 frame offers 170mm travel, front and rear, and a mullet wheel setup. The combination of 29″ front and 27.5″ rear provides the best rolling attack and rear end maneuverability. It’s a winning combo for big days out on big mountain trails.

In addition, there’s internal cable routing for super-clean looks and low maintenance. Furthermore, an angle-adjustable headset allows the rider to tweak the handling for a completely personal setup. A UDH dropout on the aluminium rear triangle is tough and future-proof. Also, the CUBE Stereo Hybrid has a direct mount chainguard to keep you driving forwards even when the going gets rough.

Frame Material

The combination of Carbon main frame and aluminium rear triangle produce a lightweight, agile eMTB with both strength and resilience.

The Race 800 represents a major advance in technology. The combination of a SR Suntour Edge EVO rear shock and SR Suntour Aion 38X 2CR Air fork work harmoniously and provide great balance.

The HPC Race is a game-changing eMTB with a lot to offer. Great handling and power are only a few of many characteristics that make this formidable creature shine. Make no mistake, the Stereo Hybrid ONE77 HPC Race 800 means business. Moreover, it’s sleek lines are attributable to Bosch’s fully integrated 800Wh PowerTube battery.

Bosch Performance CX 85Nm & Fully Integrated 800Wh PowerTube

The combination of Performance CX 85Nm and long range 800Wh battery delivers the kind of manners one expects out on the trail. A tuned, angled drive position ensures the very best performance and ground clearance. The Stereo Hybrid ONE77 HPC Race 800 features better handling than before and revised kinematics. The new geometry and more progressive rear end with Boost axle make for a more potent All Mountain configuration, capable of taking on any trail.

The Bosch System Controller sits neatly on the top tube and provides a mix of colours to identify riding mode as well as battery charge status.

On the front of the Stereo Hybrid ONE77 HPC Race 800 is a great set of SR Suntour Aion 38X 2CR air forks with 170mm travel. They have a lockout setting to facilitate a stiffer front end. Furthermore, these superbly strong and robust forks are a match for any rough terrain. A SR Suntour Edge EVO rear shock provides the perfect balance and keeps the Race 800 where it needs to be.

A Great Specification at an Affordable Price

Gearing is via a top notch Shimano Deore 12-Speed complementing perfectly the hugely wide ranging cassette, a Shimano Deore 10-51T. Shimano Deore shifters ensure clean and precise indexing, which is both effortless and responsive.

Keeping the bike afloat are Schwalbe Magic Mary, Performance, 2.40 on the front and Schwalbe Big Betty, Performance, 2.40 on the rear. They keep the HPC Race on the straight and narrow, providing immense grip at all times. A fine set of Magura MT Thirty 4-piston hydraulics, front and rear on 203 rotors tame the bike when needed.

CUBE’s dropper seatpost with handlebar actuation and internal routing is silky smooth and responsive.

The CUBE Stereo Hybrid ONE77 HPC Race 800 provides great specification with awesome power and range.

See our full range of Cube ebikes HERE.

Motor	Bosch Drive Unit Performance CX (85Nm)
Battery	800Wh
Gears	Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Cassette	Shimano Deore CS-M6100, 10-51T
Frame	C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Forks	SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
Rear Shock	SR Suntour Edge EVO 2CR 230x65mm
Seatpost	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Brakes	Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Wheel Size	29"/27.5"
Tyres	Front: Schwalbe Magic Mary, Performance, 2.4 Rear: Schwalbe Big Betty, Performance, 2.4
Colour	dazzle'n'black, liquidorange'n'orange, slapgrey'n'prism
Frame Size	37cm (Small), 40cm (Medium), 42cm (Large), 48cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
