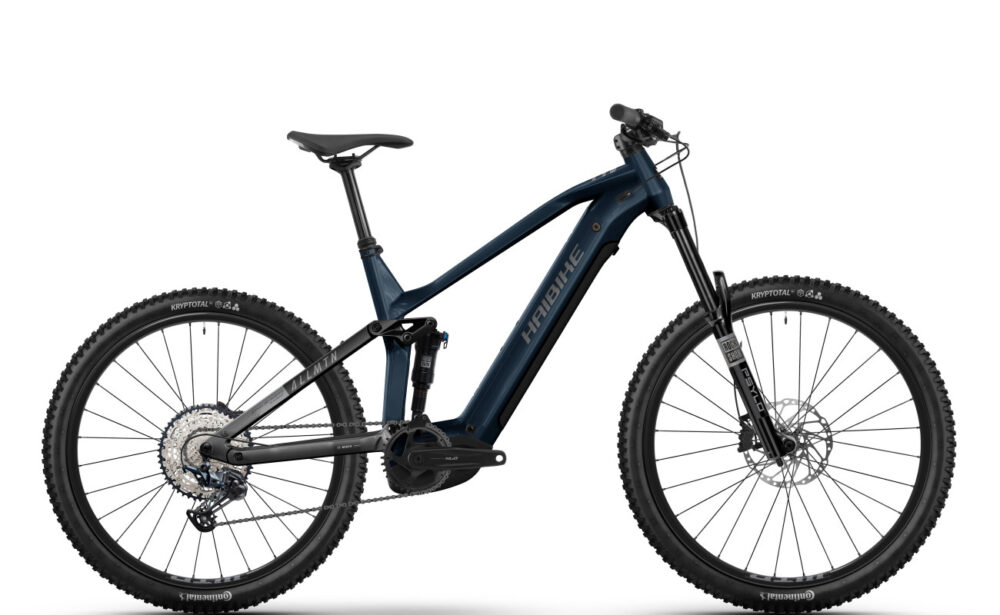

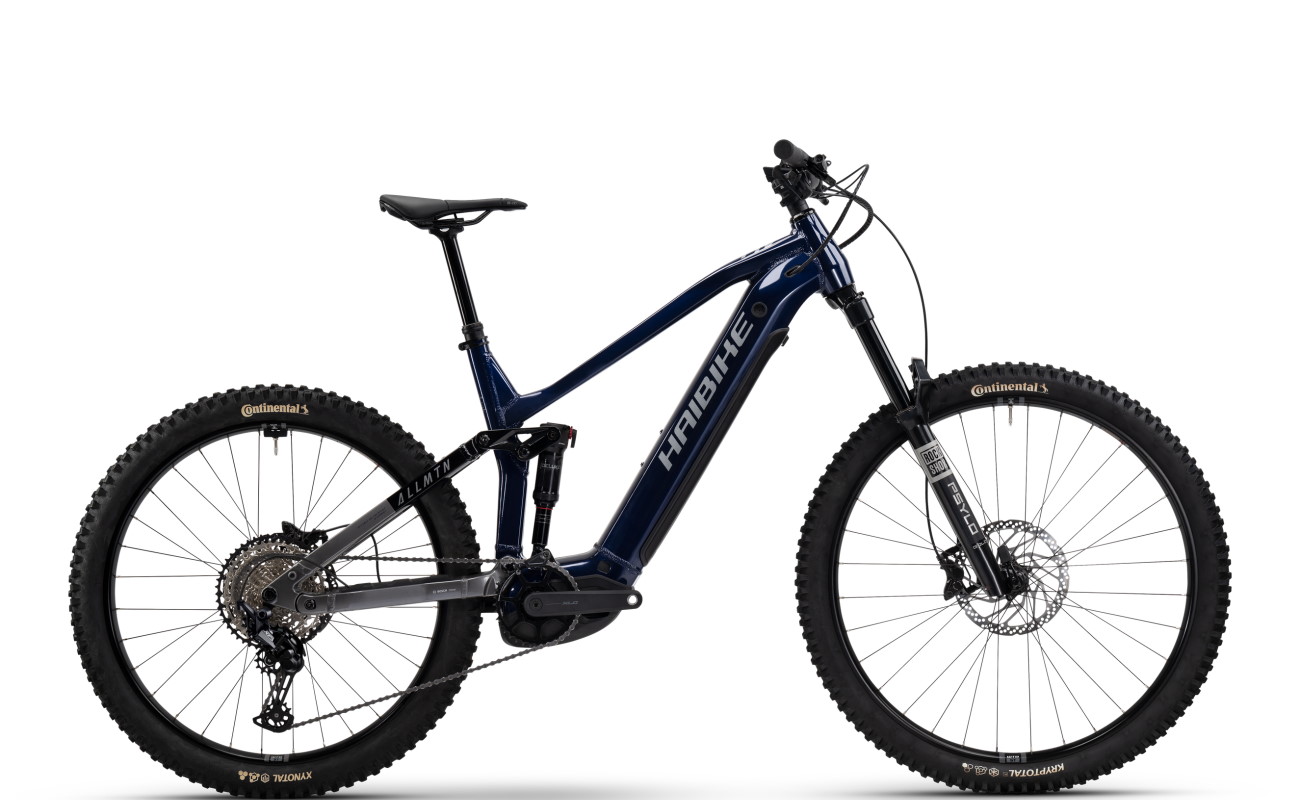

Haibike ALLMTN 6 - OCEANBLACK-GREY-GLOSS

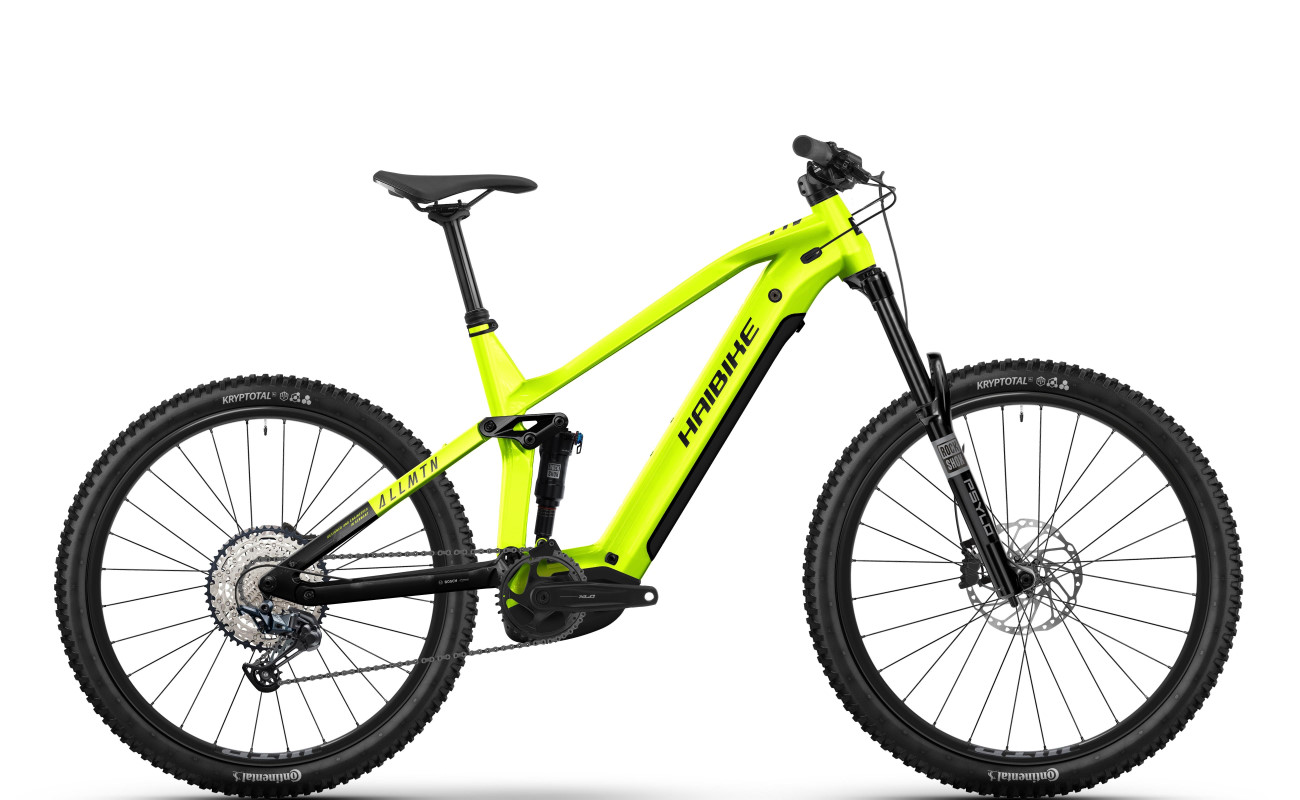

Haibike ALLMTN 6 - NEBULAR LIME-BLACK-GLOSS

£4,699

Bosch Performance CX motor, 800Wh, RockShox suspension front & rear, Shimano SLX 12-Speed, Shimano Deore MT420 brakes 4-piston, dropper seatpost

Colour

Frame Size

Clear

HAIBIKE ALLMTN 6

The HAIBIKE ALLMTN 6 delivers performance, agility and a superb ride.

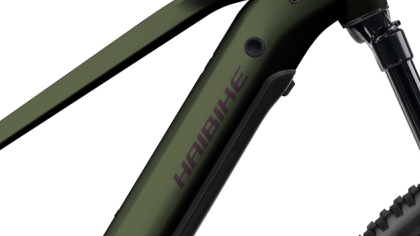

Great handling and power are only a few of the many characteristics that make this formidable creature shine. Make no mistake, the HAIBIKE ALLMTN 6 means business. Moreover, it’s sleek lines are attributable to Bosch’s fully integrated 800Wh PowerTube battery. In addition, there’s internal cable routing for clean lines and low fuss.

Bosch Performance CX 85Nm & Fully Integrated 800Wh PowerTube

The combination of Performance CX 85Nm and long range 800Wh battery delivers the kind of manners one expects out on the trail. A tuned, angled drive position ensures the very best performance and ground clearance. The HAIBIKE ALLMTN 6 features better handling than before.

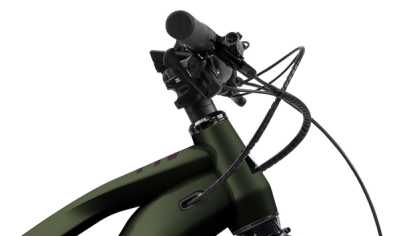

The Bosch LED Controller provides a mix of colours to identify riding mode as well as battery charge status. Also, it allows access to assist levels and more. In addition, a Kiox 300 display offers a concise read of riding data in full colour.

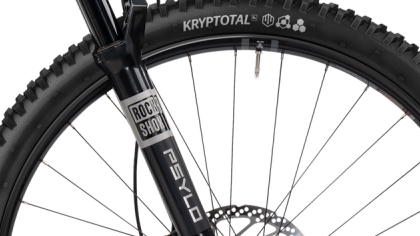

On the front of the HAIBIKE ALLMTN 6 is a great set of Rockshox Psylo Gold RC air forks with 160mm travel. The new Isolator RC damper features three-position compression adjustment (Open, Pedal, and Firm) with externally-adjustable Rebound providing superior traction, control, and confidence for the rider.

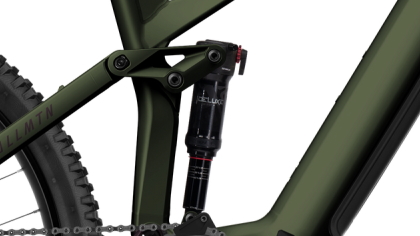

Furthermore, these superbly strong and robust forks are a match for any rough terrain. A Rockshox Deluxe Select+ RT 205x65mm, DebonAir+ rear shock provides the perfect balance and keeps the HAIBIKE ALLMTN 6 where it needs to be. It’s easy to use and a doddle to set up, providing more than ample control over the most demanding bumps and hollows.

Great Specification

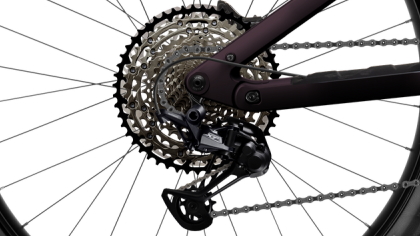

Gearing is via a top notch Shimano SLX 12-Speed complementing perfectly the hugely wide ranging cassette, a Shimano SLX 10-51T. Shimano Deore shifters ensure clean and precise indexing, which is both effortless and responsive.

The ALLMTN 6 comes with a ‘mullet’ setup. 29″ on the front and 27.5″ on the rear. Continental Kryptotal-Fr, Trail Endurance 60-622 tyres are super grippy and maintain a reliable and stable ride. Stopping power is gradual yet highly effective thanks to a fine set of Shimano Deore BR-MT420 4-piston hydraulics, front and rear on 203 rotors.

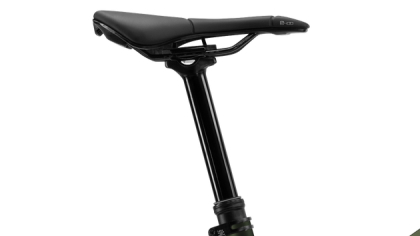

Limotec’s dropper seatpost with handlebar actuation and internal routing is silky smooth and responsive.

The HAIBIKE ALLMTN 6 provides great specification with awesome power and range.

See our full range of HAIBIKE ebikes HERE.

Motor	Bosch Drive Unit Performance CX (85Nm)
Battery	800Wh
Gears	Shimano SLX RD-M7100 12s, Shadow+
Cassette	Shimano SLX CS-M7100-12, MICRO SPLINE
Forks	Rockshox Psylo Gold RC 160 mm
Rear Shock	Rockshox Deluxe Select+ RT 205x65mm, DebonAir+
Seatpost	Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
Brakes	Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons 203 mm
Wheel Size	Mullet: 29" front, 27.5" rear
Tyres	Continental Kryptotal-Fr, Trail Endurance 60-622
Colour	nebular lime/black – glossy, ocean black/grey – glossy
Frame Size	40cm (Small), 44cm (Medium), 47cm (Large), 49cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
