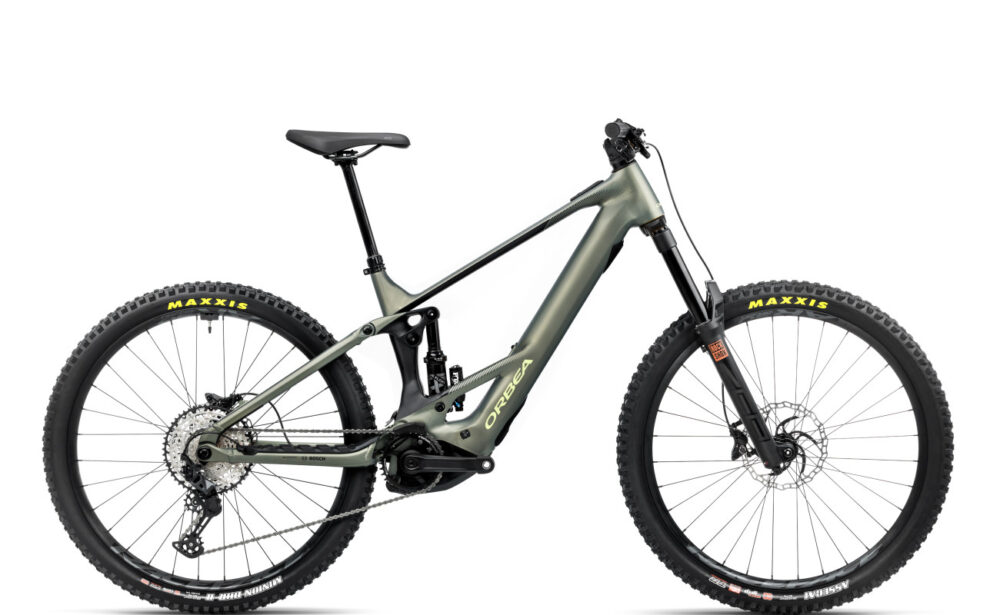

ORBEA Wild H20 - Spaceship Green-Black (Matt)

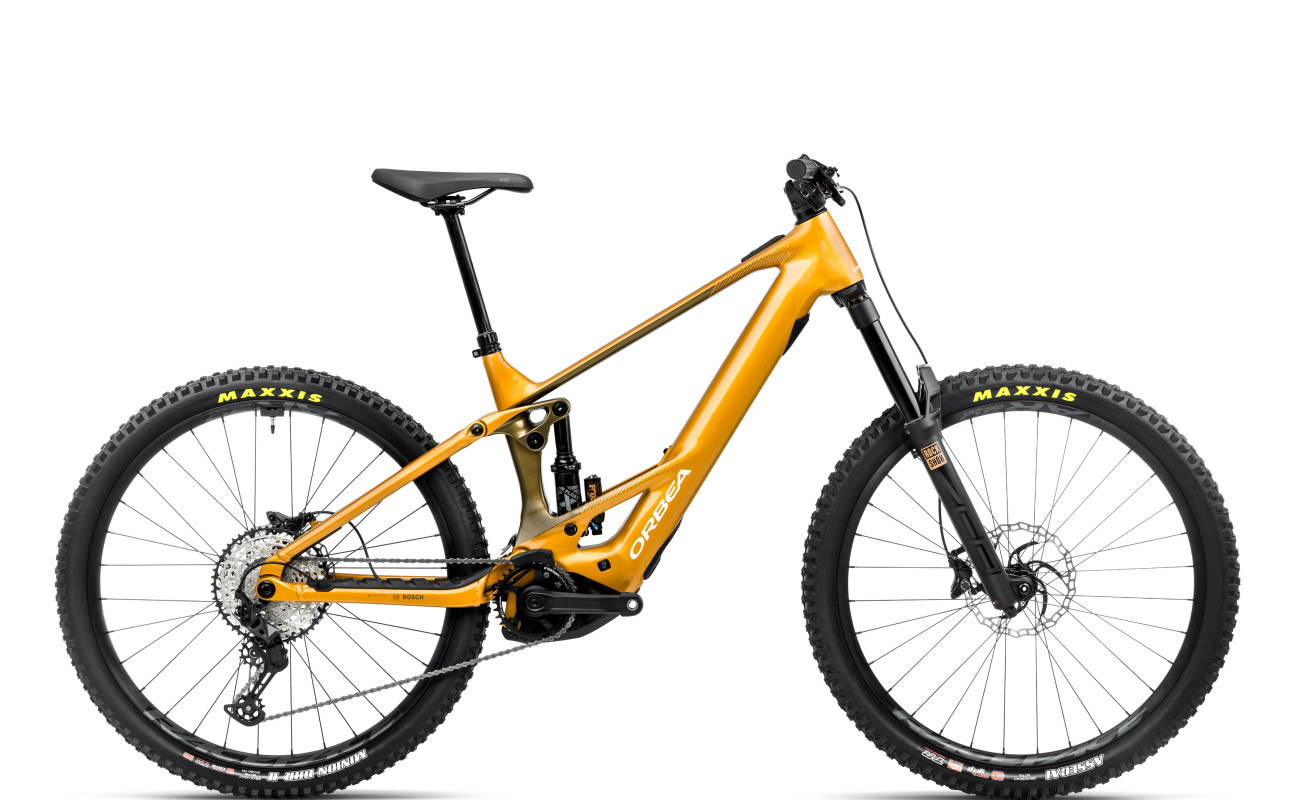

ORBEA Wild H20 - Bumblebee Yellow-Metallic Olive Green (Gloss)

£5,799

Hydroformed alloy frame, 750Wh, Bosch Performance CX (85Nm) motor, Shimano SLX M7100 SGS Shadow Plus, 12-speed, RockShox ZEB Base-A2 DebonAir+ fork, Fox Float X Performance shock, Race Face AR rims

Colour

Frame Size

Clear

ORBEA Wild H20

The ORBEA Wild H20 pushes the boundaries of Enduro with a superb specification and immense performance.

It’s 170mm travel both front and rear signals the fact that the ORBEA Wild is ready for anything!

Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. New riders benefit from more comfort and stability, whereas riders with more experience will feel unleashed. The Wild range of eMTBs are indeed something very special.

The ORBEA Wild H20 features a unique hydroformed alloy frame. It unites ground-braking design with exceptional performance. The 750Wh Bosch PowerTube disappears elegantly into the down tube and balances the bike. The Boost 148 rear triangle, oversized bearings and slacker head angle for greater stability add to the razor-sharp handling, no matter how hard you push.

The Fox Float X Performance with Trunnion Mount and the RockShox ZEB Base-A2 DebonAir+ suspension fork are a great match. Together, they provide a controlled and progressive suspension performance that swallows up even the toughest chunks.

Bosch Performance CX (85Nm), Smart System & More!

The combination of Bosch’s Performance CX pushing out 85Nm and long range 750Wh battery ensures awesome power delivery AND range. Thanks to a super cool frame design, they’re fully protected too, so even the most ragged terrain isn’t a concern.

Featuring Bosch’s Smart System, System Controller and Mini Remote, The ORBEA Wild H20 has the very latest tech. The System Controller sits neatly on the top tube away from trouble. On the bars is the Mini Remote, a simple unit comprising just two buttons; on/off and riding mode.

Top Quality Components

Super slick Shimano SLX M7100 SGS Shadow Plus 12-speed gearing harmonises perfectly with the Shimano CS-M7100 10-51t 12-speed cassette. Shimano Deore shifters ensure clean and precise indexing, which is both effortless and responsive.

Full control on the trails is guaranteed. The H20 has a winning combination of 2 x 29″ Maxxis Minnion 2.40’s ensuring an impressive agility and full control. A great set of Race Face AR rims provide superb rigidity and strength. Stopping power is highly responsive thanks to a fine set of 4-piston Shimano MT420 hydraulics on a set of 203 rotors.

The ORBEA Wild H20 is a true E-Enduro with a superb specification, great options and a super slick look.

Options

There’s a plethora of options and upgrades now available, to personalise the Wild:

Bosch Range Extender PowerMore 250Wh +£439.00
Fox 38 Float Performance 170 Grip 3-Pos QR15x110 fork +£135.00
OC Mountain Control MC10 Carbon, Rise 20, Width 800 handlebar +£79.00
OC Mountain Control MC10 Carbon, Rise 35, Width 800 handlebar +£79.00
OC Mountain Control MC11 Alu SL, 0º stem +£15.00
Shimano M6120 Hydraulic Disc brakes +£89.00
Oquo Mountain Control MC32TEAM POWER (29″Front / 27,5″Rear) wheels +£485.00
Oquo Mountain Control MC32TEAM POWER wheels +£355.00
Maxxis Assegai 2.50″ DH TR(F) / Minion DHR II 2.40″ DH TR(R) tyres +£25.00
Fizik Aidon manganese rail saddle +£35.00
Lezyne MACRO DRIVE X lock (front)+Lezyne FEMTO STVZO (rear) lights +£89.00
BOSCH Display unit KIOX 300 Black BHU3600 display +£135.00

See our full range of ORBEA ebikes HERE.

Motor	Bosch Drive Unit Performance CX (85Nm)
Battery	750Wh
Gears	Shimano SLX M7100 SGS Shadow Plus, 12-speed
Cassette	Shimano CS-M7100 10-51t 12-Speed
Forks	RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific Q15X110 Boost
Rear Shock	Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Seatpost	OC Mountain Control MC22, 31.6mm, Dropper
Brakes	Shimano MT420 Hydraulic Disc, 4-piston
Wheel Size	29" or "27.5"/29" Mullet option
Tyres	Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra

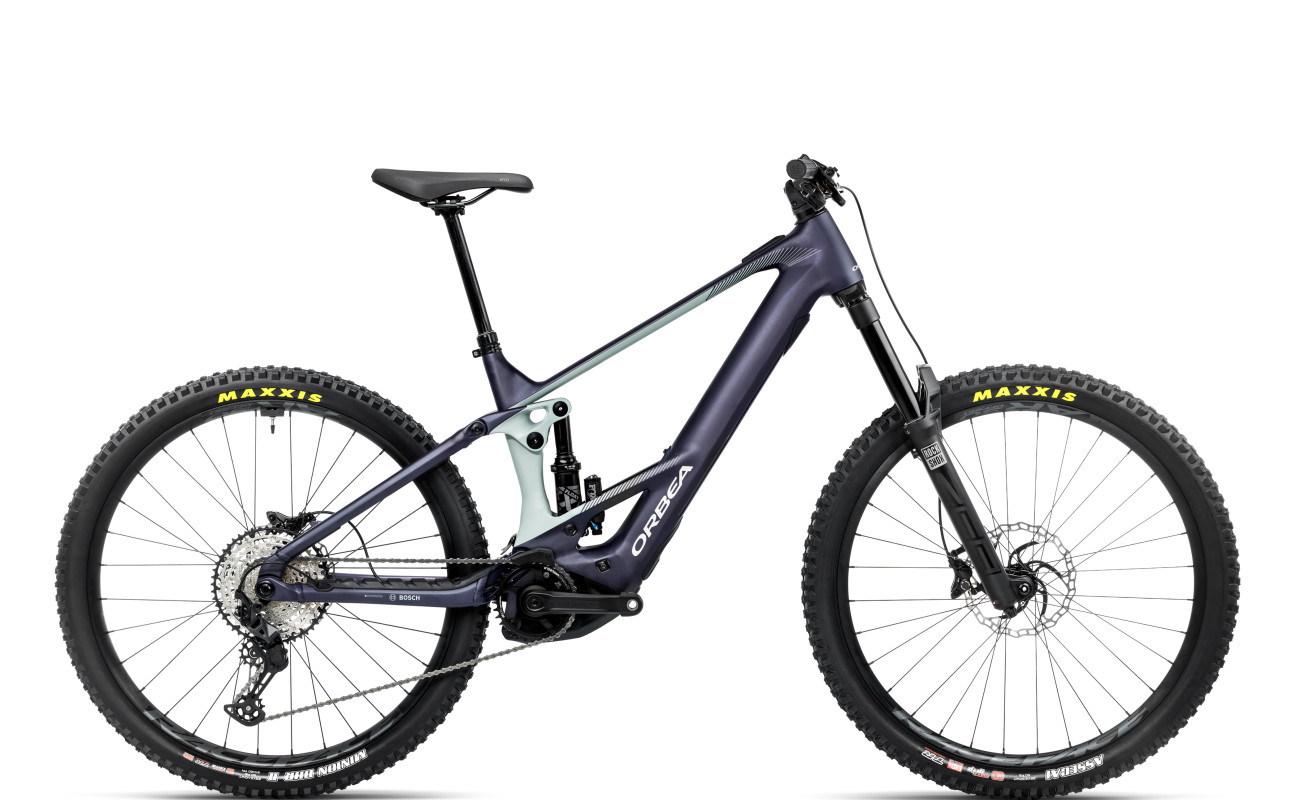

Colour	Bumblebee Yellow-Metallic Olive Green (Gloss), Spaceship Green-Black (Matt), Tanzanite-Blue Stone (Matt)
Frame Size	41.5cm (Small/Medium), 43.5cm (Large), 46cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
