£3,899

Bosch Performance CX 85Nm, Shimano Deore 12-speed, 600Wh Integrated battery, Intuvia 100 display, 120mm travel

Frame Size

Clear

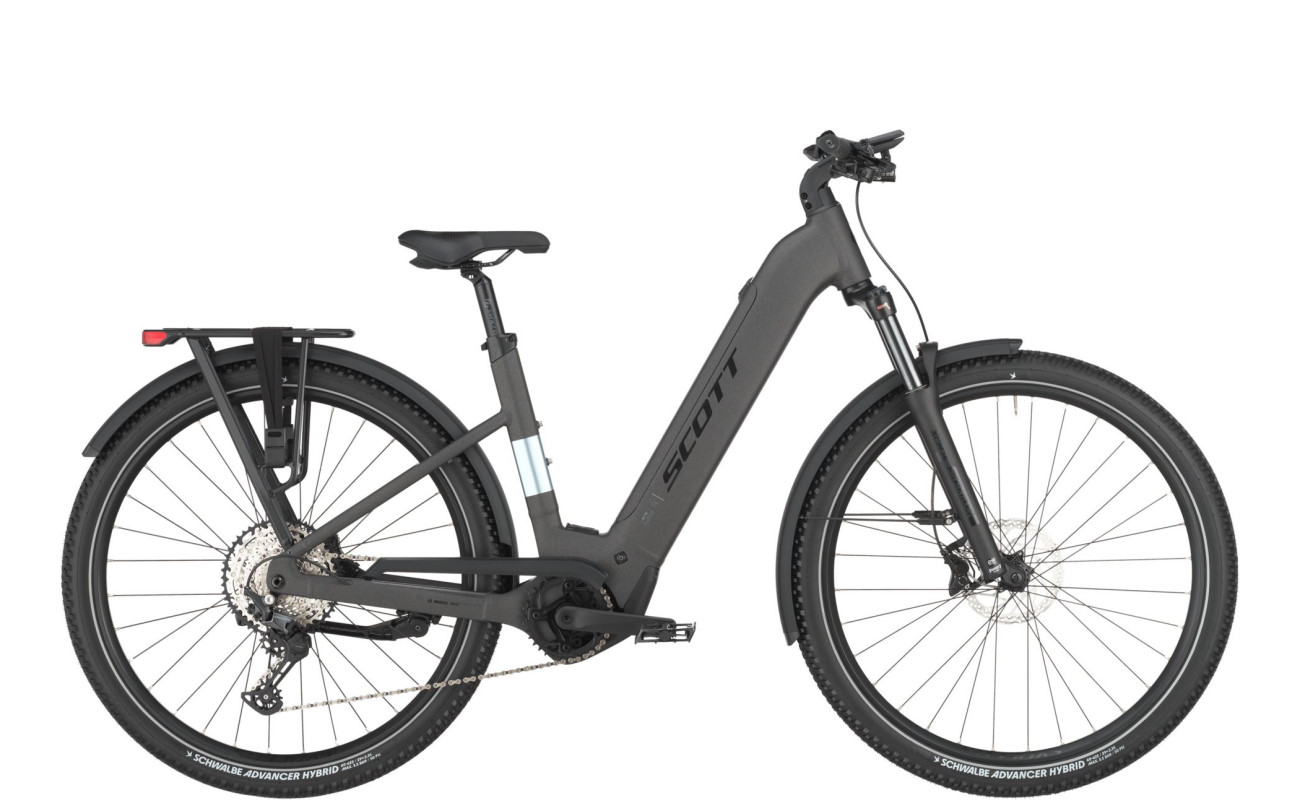

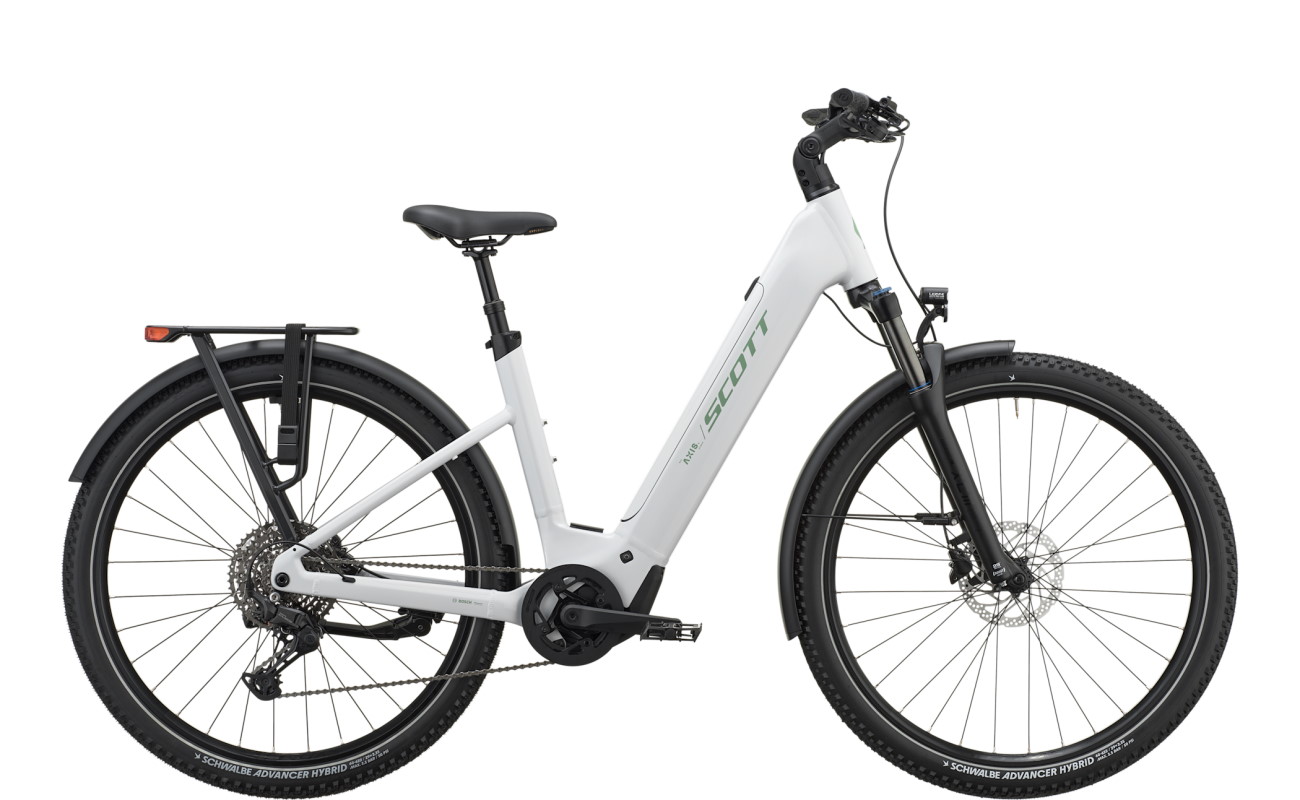

SCOTT Axis 20 Wave

The SCOTT Axis 20 Wave is the perfect bridge between urban cruising and mountain biking.

Featuring an easy entry step through frame, the Wave is ideal for both gents and ladies wanting simplicity and comfort.

Featuring the latest Bosch Performance CX motor and 600Wh battery, the Axis is perfect for outdoor explorations. it has great pulling power, so if you want to bring the kids and dogs with you, it’s not a problem. Thanks to the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.

Based on 28″ wheels, the Axis 20 Wave is full of great features and high level components. It’s extremely comfortable, provides ultra-tuned ergonomics, and is easy to ride. It’s equally at ease on tarmac roads or loose terrain. A wide 60c tyre provides tremendous grip in all weather conditions and an array of terrain.

NEW 600Wh Bosch Battery and Performance CX Drive

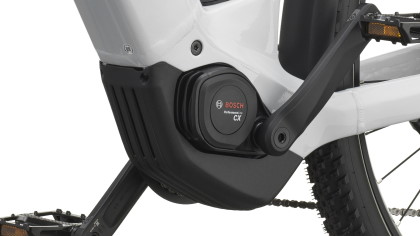

Bosch Performance CX Motor

Sporting Bosch’s newest and quieter Performance CX motor and lighter 600Wh battery, the SCOTT Axis 20 Wave is a dream to ride.

Kicking out 85Nm, the new CX motor is lighter and quieter. Furthermore, it takes riding dynamics and agility to a whole new level. Also, there’s a brand new feature: Hill Start Assist. This enables a controlled and high-traction start, even on steep terrain. When active, your eBike stays in place and does not roll back unexpectedly.

Bosch 600Wh PowerTube

There’s a very strong argument to say that Bosch have hit the sweet spot with their new 600Wh battery.

Comparing the weight of Bosch’s current 625Wh battery to the new 600Wh, shows that the 600Wh is easily over half a kilo lighter. With a range of at least 50 miles in the higher levels of assist, that’s more than enough for most people. In addition, it helps keep the total weight of the bike down too!

The SCOTT Axis 20 Wave is sensible and straightforward in design.

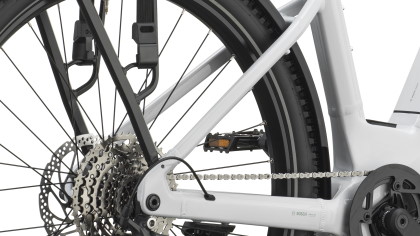

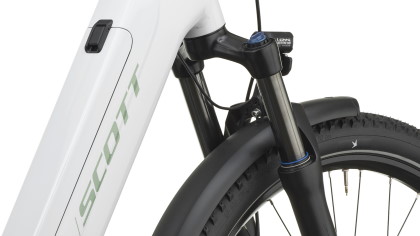

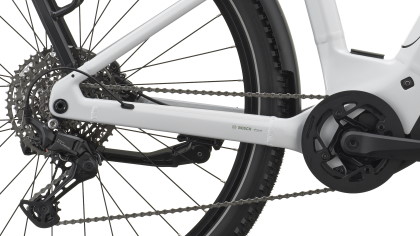

It’s Suntour front forks are strong yet versatile, with 120mm travel. They cope easily with everyday bumps to ensure a smooth and even ride. The Shimano Deore 12-speed gearing is smooth changing and effortless. A nice set of Shimano BR-MT420 4-piston hydraulic disc brakes from Shimano ensure responsive and effective braking when required.

The wheelset on the SCOTT Axis 20 Wave is both strong and reliable, offering resilience, longevity and stability. Each wheel comprises a quality Shimano hub and Syncros rims which are more than up to the job in hand. Add to that a nice sized 60c Schwalbe Advancer tyre with puncture resistance and you have a really nice, confident and comfortable ride ahead.

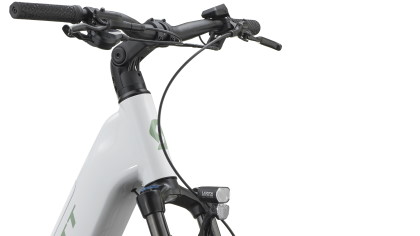

A Bosch LED Remote & Intuvia 100 provides all the necessary rider information clearly and concisely.

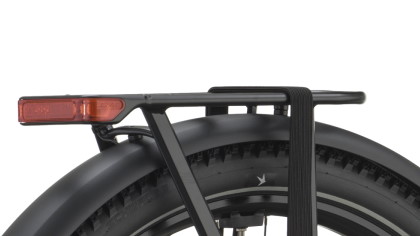

A strong Syncros rear carrier facilitates carriage of up to 27kg for all those bits and pieces. Mudguards and Lezyne lights both front and rear ensure a fully kitted experience, keeping the rider safe and free from surface grime.

The SCOTT Axis 20 Wave is an all-rounder that really delivers!

See our full range of SCOTT electric bikes HERE.

Motor	Bosch Performance CX (85Nm)
Battery	600Wh
Gears	Shimano Deore RD M6100SGS 12-Speed
Cassette	Shimano CS-M6100-12 10-51T 12 Speed
Forks	SR Suntour XCM34 LO Coil / Tapered / 15×110 bolt Axle / Lock Out / 120mm Travel
Brakes	Shimano BR-MT420 4-piston Disc Brakes
Wheel Size	28"
Tyres	Schwalbe Advancer 60-622 Wired
Colour	midnight grey
Frame Size	44cm (Small), 48cm (Medium), 52cm (Large), 56cm (Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
