Light Weight

Only 21.8kg

£3,199

Lightweight, Bosch SX motor, 9-speed Shimano CUES derailleur, integrated & removeable 400Wh Bosch PowerTube, Suntour air forks, Bosch PURION 200 Display & Remote SMART SYSTEM

Colour

Frame Size

Clear

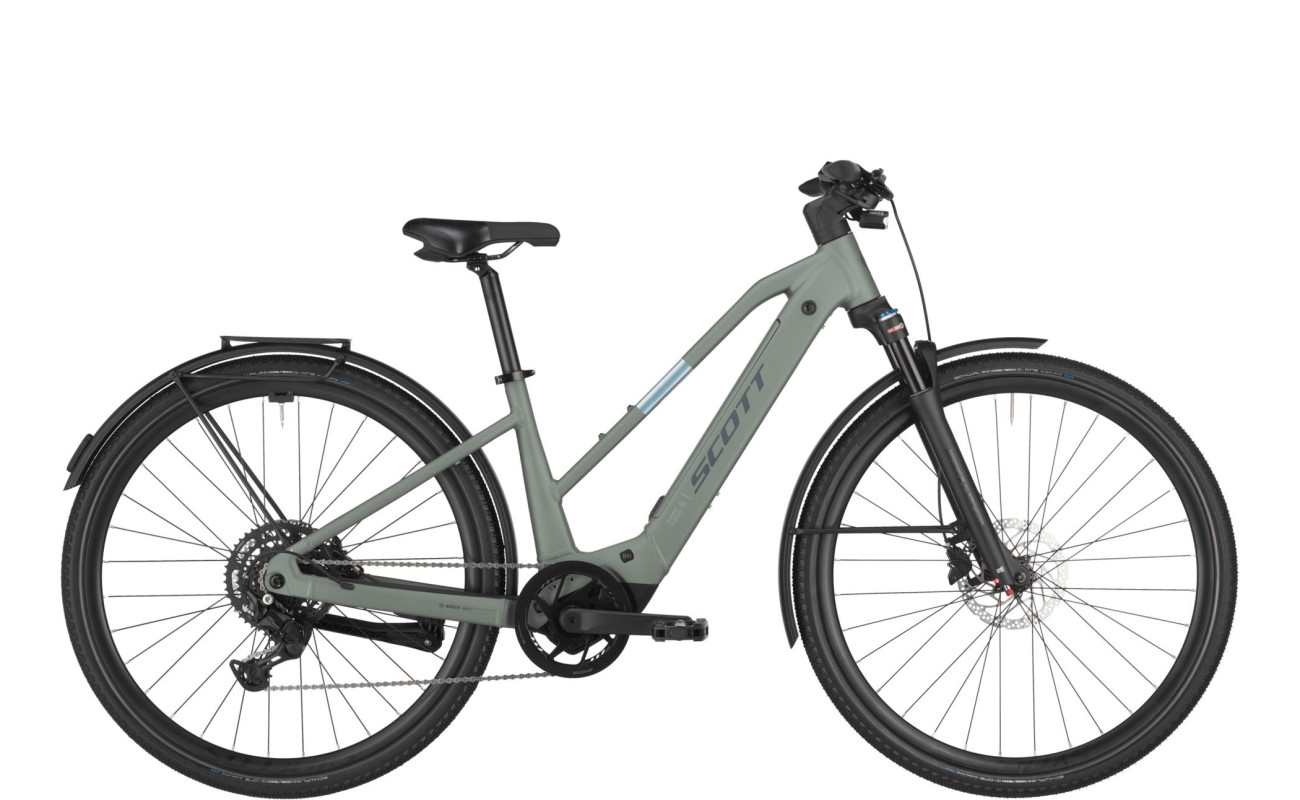

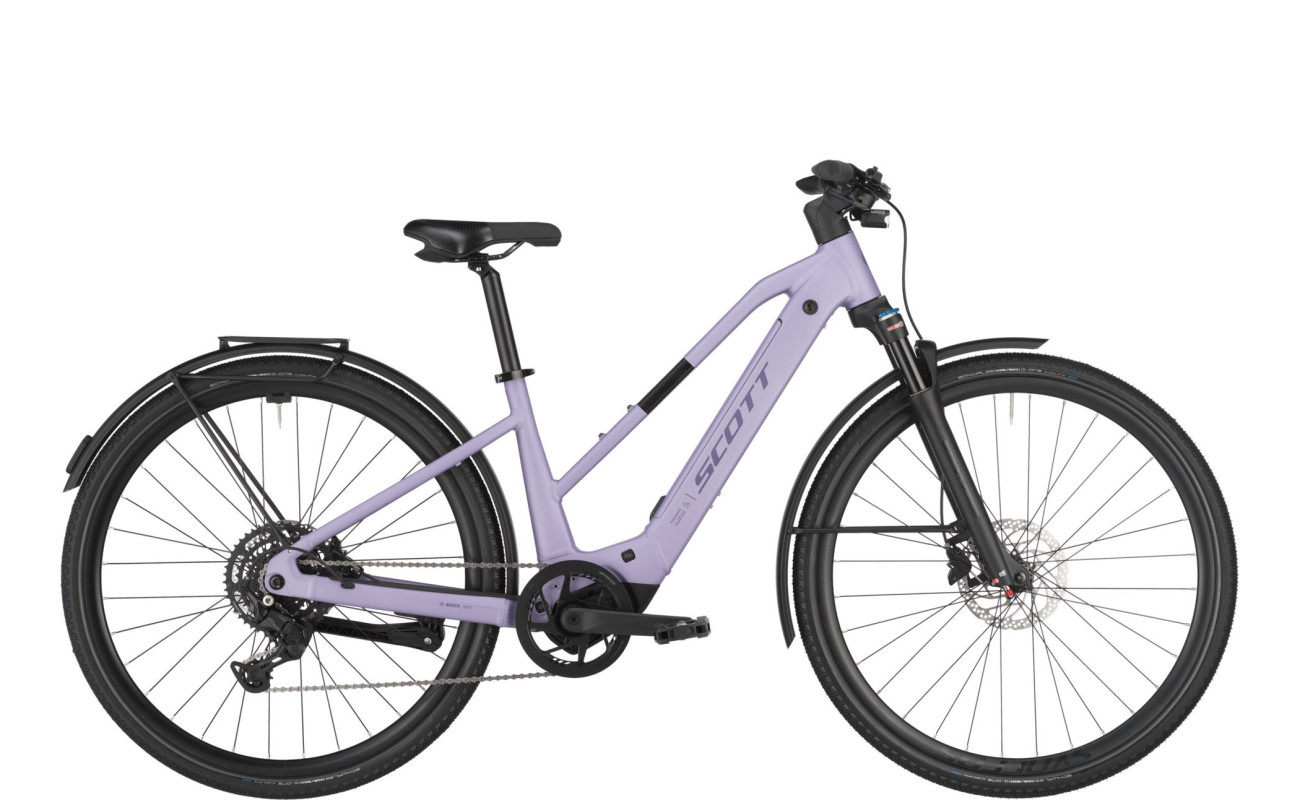

SCOTT Passage 30 Slope

The SCOTT Passage 30 Slope is a lightweight eBike with a powerful Bosch motor and extensive range.

The ‘slope’ nature of the top tube suits both gents and ladies alike who prefer a little more breadth when riding.

WEIGHT 21.8kg (without pedals)

Long gone are the days when electric bikes looked clunky and ugly! The SCOTT Passage 30 Slope has looks to die for! A true sports utility vehicle. Also, great for commuting, or leisure riding, this gritty performer takes in forest trails, canal paths or the less than smooth UK road network with ease. Those climbs, and accelerations away from tricky junctions aren’t a problem as power is delivered by the powerful Bosch SX drive system.

Fully Integrated & Removeable 400Wh Battery

Battery capacity on the SCOTT Passage 30 Slope is more than adequate for just about everyone, bearing in mind the lightweight nature of the bike. The 400Wh Bosch PowerTube integrates seamlessly in the downtube and ensures extensive range for even the longest journey.

Moreover, it’s easily taken out for charging in seconds.

Bosch SX Motor

When muscle power and electric support work in conjunction, you get top performance exactly when you need it: Bosch’s Performance Line SX is a sporty drive unit that is lighter and more compact than all their other drives.

600Watts of power
only 2kg in weight
max 55Nm torque
sprint mode for sporty riding

Pedal faster, pick up speed even faster: The Performance Line SX works at least as hard as you do. It has a reduced pedal resistance of more than 50 percent compared to the Performance Line CX, a narrower design of the cranks and an almost silent motor.

At around just 2kg, the Performance Line SX is Bosch’s lightest drive with the highest power density. It reduces the total weight of your eBike, delivers greater agility and is ideal for fans of a sporty riding style. In addition, the compact drive unit disappears elegantly into the crank area so it looks like a conventional bike.

Great Equipment on the SCOTT Passage 30 Slope

The SCOTT Passage 30 Slope comes equipped with a silky smooth 9-speed Shimano CUES derailleur with rapid fire shifters. Changing gear is effortless and precise, just when needed. Suspension is via a pair of SR Suntour NRX32-E Air forks with remote lockout that cope admirably with all those bumps and hollows. The ride is ultra comfortable, yet sporty.

Designed with the rigours of day to day use, the Passage bikes come fully equipped. Front and rear mudguards ensure a clean arrival. Furthermore, the rear carrier is capable of carrying more than ample loads. It uses a click system for easy on and off attachment of luggage. Hassle free, with no awkward clips or Velcro requiring fastening. High power lights both front and rear enhance safety and visibility.

The Purion 200 colour display with walk assist function is mounted unobtrusively to the side of the bars, providing all rider information. In addition, Schwalbe G-One Overland 365 Performance tyres set on a robust set of Syncros rims ensure a good level of puncture resistance. The addition of a very comfy Syncros Capilano saddle ensures the Passage is an extremely comfortable ride.

The SCOTT Passage 30 Slope offers the very best in Bosch together with a lightweight frame.

Learn more about the Bosch Performance Line SX motor HERE.

See our full range of SCOTT eBikes HERE.

Motor	Bosch PERFORMANCE SX SMART SYSTEM – 25km/h / 55Nm
Battery	Bosch PowerTUBE 400Wh SMART SYSTEM compact
Gears	Shimano CUES RDU4000GS 9 Speed
Cassette	Shimano LG300 / 11-46T
Forks	SR Suntour NRX32-E Air LO R / Tapered / 15×100 bolt Axle / Remote Lock Out / Steel Steerer / 75mm Travel
Brakes	Shimano BR-MT200 Disc
Wheel Size	28"
Tyres	Schwalbe G-One Overland 365 Performance 700x45C
Colour	highland green, lila purple
Frame Size	44cm (Small), 48cm (Medium), 52cm (Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
