£6,500

Rockshox Zeb Select eMTB Air fork 180mm, Rock Shox Vivid Select shock, SRAM GX Eagle 12-speed, SRAM DB8 Stealth 4-piston hydraulic brakes, 800Wh, Purion 400 display

Frame Size

Clear

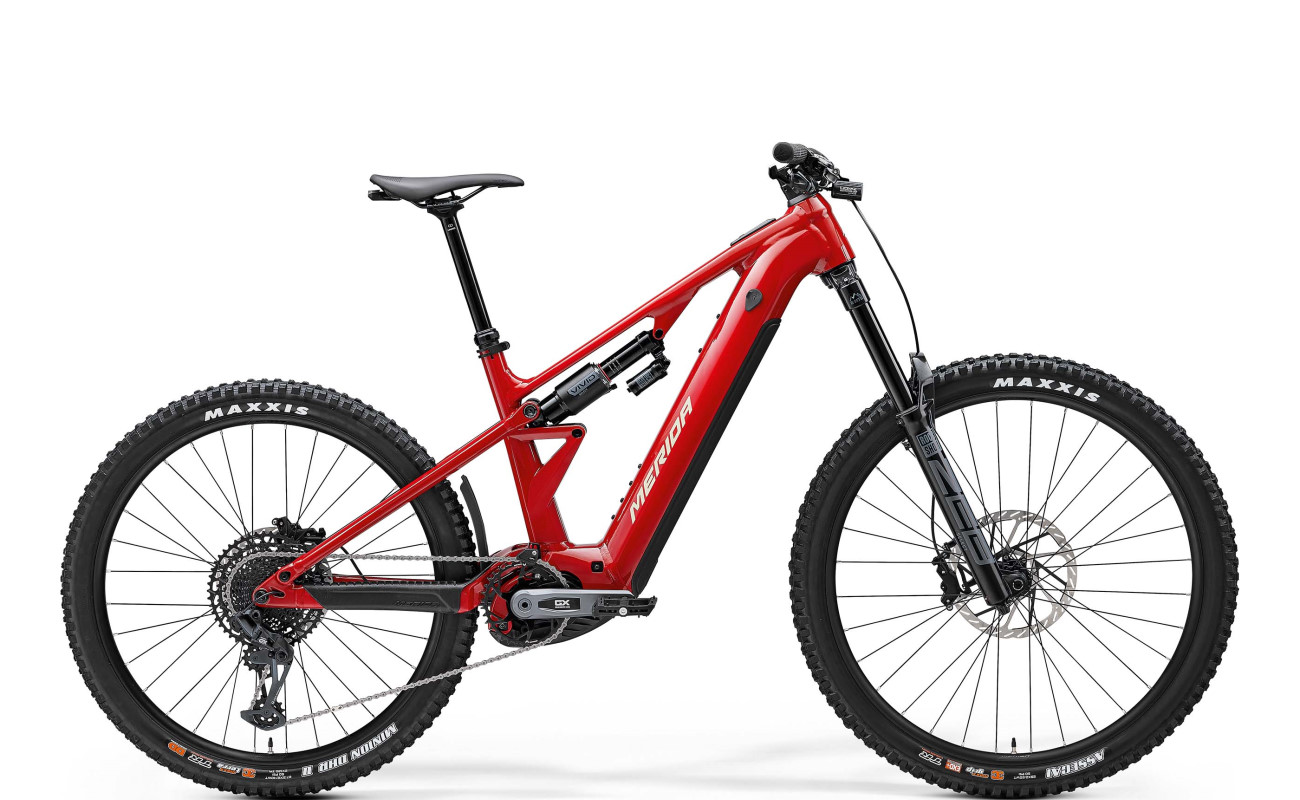

MERIDA eONE-Eighty 700

The MERIDA eONE-Eighty 700 is a high specification 180mm travel eMTB. This beauty guarantees immense fun and delivers exceptional performance.

The eOne-Eighty is for the heavy hitters, bike park senders and big mountain brawlers. It’s ready to ride the biggest lines and burliest tracks and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a 800Wh battery and 85Nm of Bosch CX power. Furthermore, the battery is removeable for easy charging off the bike. It’s MERIDA’s longest travel e-bike ever, with 180mm of suspension at either end on a robust aluminium frame. Add coil shock compatibility, mullet only setup plus a whole host of other features and getting rowdy is where the eOne-Eighty starts, not finishes.

There’s a serious amount of range on offer too, thanks to the new 800Wh battery and the option to add a 250Wh Bosch range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride.

Bosch’s Purion 400 display sits unobtrusively adjacent to the stem and provides all necessary rider information, clearly and concisely. The Bosch Mini Remote on the left of the bars allows easy access to all functions at the press of a button.

Perfect geometry. Perfect lines. A great set of components take the eONE-Eighty to dizzy heights. Designed for full off road, this gem of an eMTB provides serious performance.

Perfect Balance, Extraordinary Performance, Great Components

The Rockshox Zeb Select eMTB Air forks are superb, being ultra responsive and highly capable. As a result, they gobble up almost anything thrown in front of them. Offering a huge 180mm of travel, the Zeb’s are a high quality fork with superb performance. On the rear is a very nice Rock Shox Vivid Select shock. Featuring a rebound and compression damper adjuster the Vivid Select offers huge flexibility and fine tuning.

Gearing on the MERIDA eONE-Eighty 700 is silky smooth. A SRAM GX Eagle 12-speed and 10-52T cassette work in perfect harmony. A Merida Expert TR II tubeless ready wheelset prove tough, stable and reliable. Maxxis Assegai 29×2.5″ tyres are on the front, whilst the rear is taken care of by a Maxxis Minion DHR II 27.5×2.4″. Consequently, the result is superb maneuverability and grip, all in one. Shimano Shimano TC500 hubs finish off a high performing wheelset. Braking is highly effective, thanks to a fine set of SRAM DB8 Stealth 4-piston hydraulics, front and rear. They’re hugely responsive and offer both powerful and controllable braking. Furthermore, the eONE-Eighty 700 comes with SRAM HS2 rotors, being 220mm on the front and 200mm on the rear.

Unlike many eMTBs, the MERIDA eONE-Eighty 700 comes with lights on both front and rear. Worthy of note is a strong Lezyne Fusion lamp on the front which easily illuminates the path ahead in low light conditions.

A Merida TEAM TR II dropper offers up 30-230mm travel dropper seatpost operates smoothly and precisely.

Enviable Aesthetics, Smooth Lines

The aesthetics of the MERIDA eONE-Eighty 700 are enviable. This is one seriously good looking eMTB! Internal cable routing has been perfected thanks to Merida’s ‘Smart Entry’ approach. Cables are routed internally, with clamping under tension. There’s no rattles or noise!

Sizing

To find your ideal frame size, click HERE to visit the MERIDA website and use their interactive sizing tool.

See our full range of MERIDA eMTBs HERE.

Motor	Bosch Performance Line CX
Battery	800Wh
Gears	SRAM GX Eagle 12-speed
Shifters	SRAM GX Eagle
Cassette	SRAM CS XS 1270 ; 10-52 teeth; 12 speed
Forks	Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29×2.6" max. tyre size
Rear Shock	Rock Shox Vivid Select
Seatpost	Merida TEAM TR II dropper
Brakes	Front: SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 220mm rotor Rear: SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 200mm rotor
Wheel Size	Mullet: 29" front, 27.5" rear
Rims	Merida Expert TR II; 110×15 WHF; 148×12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Hubs	Front: Shimano TC500; 15x100mm; 32 spoke; Centerlock Rear: Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
Tyres	Front: Maxxis Assegai; 29×2.5"; kevlar bead; TR EXO+ 3C MaxxGrip Rear: Maxxis Minion DHR II; 27.5×2.4"; kevlar bead; 3C DD TR MaxxTerra
Colour	Glossy Heritage Red
Frame Size	40cm (XSHORT), 41cm (SHORT), 42.5cm (MID), 44.5cm (LONG), 46.5cm (XLONG)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
